Outdoor Led Stadium Flood Light 100w 200w 400W football stadium floodlights

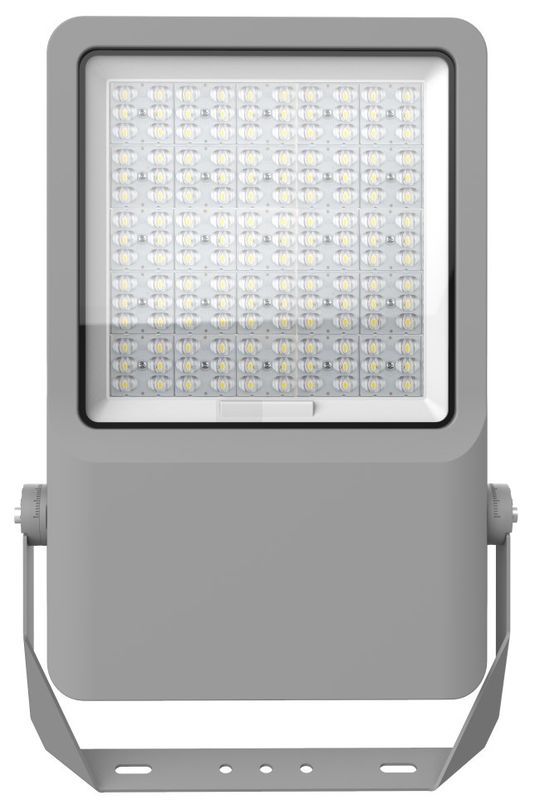

Gambar besar : Outdoor Led Stadium Flood Light 100w 200w 400W football stadium floodlights

Detail produk:

Tempat asal:	Ningbo China
Nama merek:	Die Casting Man
Sertifikasi:	CE, RoHs, ENEC, CB
Nomor model:	SLFR03-15

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kotak karton dengan paket styrofoam
Waktu pengiriman:	7-40 hari berdasarkan jumlah pesanan
Syarat-syarat pembayaran:	T/T, Western Union, L/C
Menyediakan kemampuan:	10000pcs/bulan

Kontak

Detil Deskripsi produk

Model:	SLFR03-15	Watt:	50w
LED Lifetime:	50000h / Luxon 5050	CCT:	3000K, 4000K, 5700K, 6500K
Fluks bercahaya:	19500-22500lm	Jaminan:	5 tahun
Menyoroti:	100W LED stadium flood light , 200W outdoor football floodlight , 400W waterproof stadium lighting

Outdoor LED Stadium Flood Light 100w 200w 400W Football Stadium Floodlights

Product Features

Special integrated structure with avant-garde design and stable, reliable quality
Precision aluminium die-casting process, stable structure with excellent heat dissipation
Surface specially sprayed for salt spray and corrosion resistance, suitable for harsh environments
High efficiency SMD3030 lamp beads with high-quality constant current driver for reliable performance and long life
Available in 5 different sizes with power from 50W-500W for wide coverage and high cost performance
High transmittance PC lens with various light distribution angles (30°/60°/90°/TYPE II/TYPE III) for different applications

Technical Specifications

Input voltage: AC 100V-240V

Frequency range: 50HZ-60HZ

Power factor: ＞0.95

Chip brand: EPISTAR/bridgelux

Power brand: MeanWell/inventronics

System light effect: 120-130 lm/W

Power efficiency: >90%

Color temperature: 2700-6500K

Color rendering index: Ra≥70

Light distribution: Bats airfoil light distribution

Light design: Lens light distribution

LED Junction temperature: ≤ 90℃

Working temperature: -30℃ -- +50℃

Storage temperature: -30℃ -- +50℃

IP Grade: IP66

Working lifespan: ＞50,000H

Power connection: Brown (L), Blue (N), Yellow/Green (G)

Color options: Black / Silver/Grey

Beam angle: 30/60/90/120/type II/type III/P50

LED Configuration Details

LED Quantity (3030 PLAN)	Model	Configuration
30W (SLFR03-13)	48PCS	8S6P(16H1)
40W (SLFR03-13)	48PCS	8S6P(16H1)
50W (SLFR03-13)	48PCS	8S6P(16H1)
50W (SLFR03-15)	64PCS	8S8P(16H1)
60W (SLFR03-15)	96PCS	8S12P(6H1)
100W (SLFR03-110)	144PCS	8S18P(16H1)
150W (SLFR03-110)	216PCS	8S27P(6H1)
200W (SLFR03-120)	256PCS	8S32P(16H1)
240W (SLFR03-120)	320PCS	8S40P(6H1)
300W (SLFR03-140)	432PCS	8S54P(16H1)
400W (SLFR03-140)	576PCS	8S72P(16H1)
460W (SLFR03-140)	720PCS	8S90P(6H1)
