Aluminum Led Street Light 3030 or 5050 Optics 150w 180w 200w 250w outdoor led light

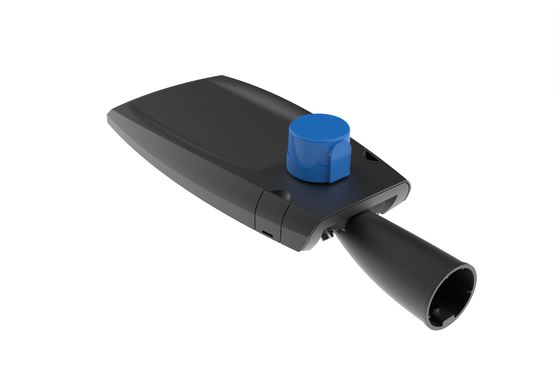

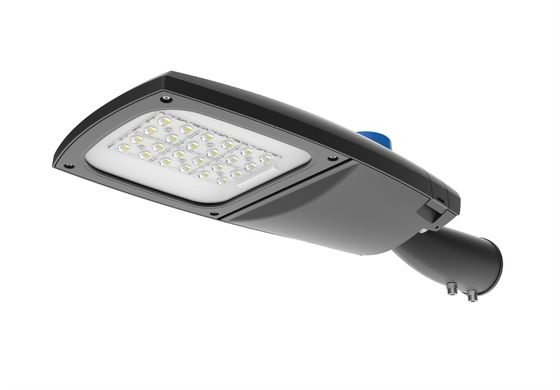

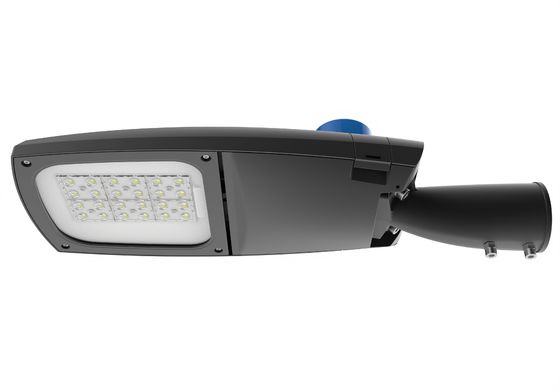

Gambar besar : Aluminum Led Street Light 3030 or 5050 Optics 150w 180w 200w 250w outdoor led light

Detail produk:

Tempat asal:	CINA
Nama merek:	Die-casting Man
Sertifikasi:	CE, RoHs, ENEC, CB
Nomor model:	YASL-35-60

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Harga:	Dapat dinegosiasikan
Kemasan rincian:	1 pc/tas/busa/karton, pallet opsional
Waktu pengiriman:	7-10 hari berdasarkan pesanan QTY
Syarat-syarat pembayaran:	T/T, 30% T/T sebagai deposit, saldo 70% T/T sebelum pengiriman (EXW) atau terhadap dokumen pengirima
Menyediakan kemampuan:	30000pcs/Bulan

Kontak

Detil Deskripsi produk

Kekuatan:	80w	Bahan:	Aluminium Die Casting
Warna:	Abu-abu/Hitam/Perak	Jaminan:	3-5 tahun
LED Lifetime:	5000H	Suhu warna:	3000-6500K
Efisiensi:	130-190lm/w
Menyoroti:	Aluminum LED street light 150W , Outdoor LED light 5050 optics , Aluminum street light with warranty

Aluminum LED Street Light 3030 or 5050 Optics 150W 180W 200W 250W Outdoor LED Light

Product Description

This is updated version from our YASL-14. We improve it with more efficiency and price competitiveness. Available in five sizes, it can make from 20W to 320W.

Technical Specifications

Product Code	YASL-35-40(M)	YASL-35-60(M)	YASL-35-90(M)	YASL-35-150(M)	YASL-35-240(M)
Input Wattage	30-50W	50-80W	60-120W	120-200W	200-320W
Number of Lens(PCS)	4	6	9	15	24
Product Size(mm)	563x215x110	613x240x110.2	654x256x114	780x287x114	834x341x114
Packing Size(mm)	610x250x260	660x280x260	710x300x260	810x330x260	860x380x260
Net Weight (kgs)	2.95	3.55	4.0	5.0	6.2
Gross Weight (kgs)	3.6	4.0	4.5	5.5	6.8
Quantity of packing (pcs)	1	1	1	1	1
Installation Height (m)	3～8	4～8	6～10	8～12	8～14
Installation Pipe Diameter	60	60	60	60	60/76

Additional Specifications

Materials: Housing: ADC12; Cover: Toughened Glass; Screws: 304 stainless screws
LED Brand: LUMILEDS, OSRAM, CREE (Optional)
LED Specifications: 3030, 5050 (Optional)
Optical Effect: 130～190 lm/w (Optional)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional)
Color Rendering Index: Ra≥70; Ra≥80; Ra≥90 (Optional)
Optics: TYPE I, TYPE II, TYPE III, TYPE V, TYPE IV (Optional)
Driver Brand: PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS
Input Voltage: AC90～305V
Security Level: Class I/Class II/Class 1/Class 2 (Optional)
Frequency Range: 50/60Hz
Power Factor: PF≥0.95
Dimming Mode: Time control/0-10V/Optical control/Microwaves/DALI (Optional)
Lightning Protection: 10KV/15KV/20KV (Optional)
Working Conditions Range: -40 to 45℃, 20% to 90% RH
Warranty: 5/8 year (Optional)
Protection Level: IP66; Glass IK08/09/10 (Optional), Lamp shell IK08
Certifications: ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66

Frequently Asked Questions

Q1. What is your terms of payment?

Usually, we accept T/T, irrevocable L/C at sight. For regular orders, we prefer 30% in advance, 70% against the of B/L. For long term business relations, we have more advantage terms for payment.

Q2. What is your terms of delivery?

We accept FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.

Q3: What is the lead time?

It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15 days for tooling/mould made.

Q4: How about tooling Charge?

Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintenance.

Q5. What is your sample policy?

We are glad to send wholesale led street lights samples for your inspection. Standard samples can be free, but the clients need to cover the freight cost.

Q6. Can you produce according to the samples or drawings?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7: How to confirm the quality with us before starting to produce?

1) We can provide wholesale led street lights samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.

Q8: How to solve the quality problems after sales?

Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.

Q9. What is your terms of packing?

Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.

Q10. Do you test all your goods before delivery?

Yes, we have 100% test before delivery. We have QC team comply with TQM, each step is in compliance to the standards.
