Aluminum Led Street Light 5 years warranty for Industrial Zones waterproof light street lamp project

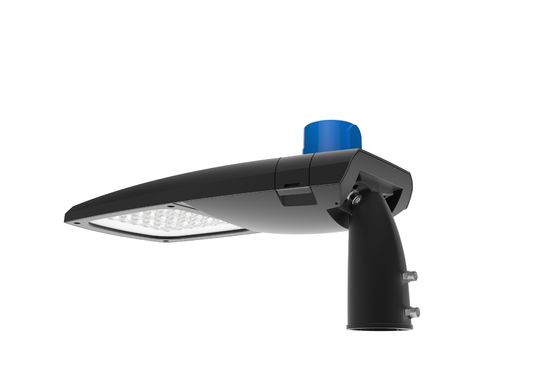

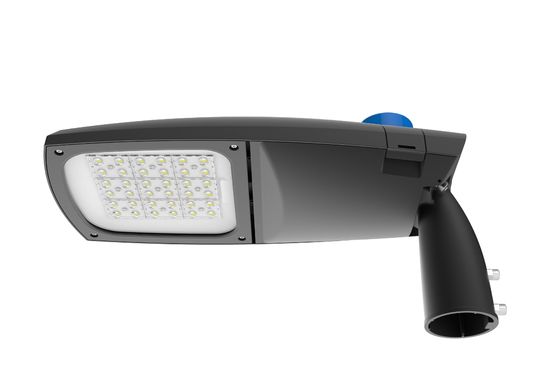

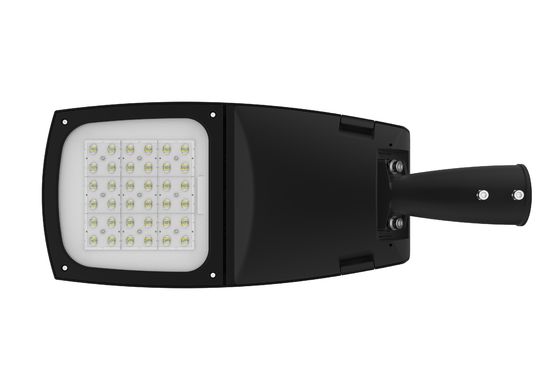

Gambar besar : Aluminum Led Street Light 5 years warranty for Industrial Zones waterproof light street lamp project

Detail produk:

Tempat asal:	CINA
Nama merek:	Die-casting Man
Sertifikasi:	CE, RoHs, ENEC, CB
Nomor model:	YASL-35-60

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Harga:	Dapat dinegosiasikan
Kemasan rincian:	1 pc/tas/busa/karton, pallet opsional
Waktu pengiriman:	7-10 hari berdasarkan pesanan QTY
Syarat-syarat pembayaran:	T/T, 30% T/T sebagai deposit, saldo 70% T/T sebelum pengiriman (EXW) atau terhadap dokumen pengirima
Menyediakan kemampuan:	30000pcs/Bulan

Kontak

Detil Deskripsi produk

Kekuatan:	80w	Bahan:	Aluminium Die Casting
Warna:	Abu-abu/Hitam/Perak	Jaminan:	3-5 tahun
LED Lifetime:	5000H	Suhu warna:	3000-6500K
Efisiensi:	130-190lm/w
Menyoroti:	aluminum LED street light with warranty , waterproof LED street lamp for industrial zones , industrial LED street light project

Aluminum LED Street Light with 5 Years Warranty for Industrial Zones

Production Description: This is an updated version of our YASL-14 model, improved for greater efficiency and competitive pricing. Available in five sizes, ranging from 20W to 320W.

Technical Specifications

Product Code	YASL-35-40(M)	YASL-35-60(M)	YASL-35-90(M)	YASL-35-150(M)	YASL-35-240(M)
Input Wattage	30-50W	50-80W	60-120W	120-200W	200-320W
Number of Lens (PCS)	4	6	9	15	24
Product Size (mm)	563×215×110	613×240×110.2	654×256×114	780×287×114	834×341×114
Packing Size (mm)	610×250×260	660×280×260	710×300×260	810×330×260	860×380×260
Net Weight (kgs)	2.95	3.55	4.0	5.0	6.2
Gross Weight (kgs)	3.6	4.0	4.5	5.5	6.8
Quantity of packing (pcs)	1	1	1	1	1
Installation Height (m)	3～8	4～8	6～10	8～12	8～14
Installation Pipe Diameter	60	60	60	60	60/76

Additional Specifications

Angle Adjustment: ±15° Adjustable
Materials: Housing: ADC12; Cover: Toughened Glass; Screws: 304 stainless screws
LED Brand: LUMILEDS, OSRAM, CREE (Optional)
LED Specifications: 3030, 5050 (Optional)
Optical Effect: 130～190 lm/w (Optional)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star)
Color Rendering Index: Ra≥70; Ra≥80; Ra≥90 (Optional)
Optics: TYPE I, TYPE II, TYPE III, TYPE V, TYPE IV (Optional)
Driver Brand: PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS
Input Voltage: AC90～305V
Security Level: Class I/Class II/Class 1/Class 2 (Optional)
Frequency Range: 50/60Hz
Power Factor: PF≥0.95
Dimming Mode: Time control/0-10V/Optical control/Microwaves/DALI (Optional)
Lightning Protection: 10KV/15KV/20KV (Optional)
Working Conditions Range: -40 to 45℃, 20% to 90% RH
Warranty: 5/8 year (Optional)
Protection Level: IP66; Glass IK08/09/10 (Optional), Lamp shell IK08
Certifications: ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66
