Outdoor Led Stadium Flood Light 400W For Landscape Sports Ground

Outdoor Led Stadium Flood Light 400W For Landscape Sports Ground
Outdoor Led Stadium Flood Light 400W For Landscape Sports Ground
video play

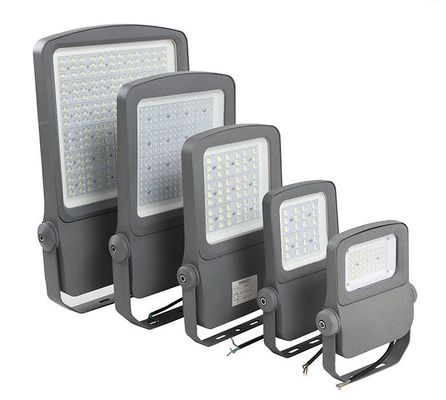

Gambar besar :  Outdoor Led Stadium Flood Light 400W For Landscape Sports Ground

Detail produk:
Tempat asal: Ningbo China
Nama merek: Die Casting Man
Sertifikasi: CE, RoHs, ENEC, CB
Nomor model: SLFR03-15
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Harga: Dapat dinegosiasikan
Kemasan rincian: Kotak karton dengan paket styrofoam
Waktu pengiriman: 7-40 hari berdasarkan jumlah pesanan
Syarat-syarat pembayaran: T/T, Western Union, L/C
Menyediakan kemampuan: 10000pcs/bulan
Kontak
Detil Deskripsi produk
Model: SLFR03-15 Watt: 50w
LED Lifetime: 50000h / Luxon 5050 CCT: 3000K, 4000K, 5700K, 6500K
Fluks bercahaya: 19500-22500lm Jaminan: 5 tahun
Menyoroti:

400W LED stadium flood light

,

outdoor LED flood light for sports

,

landscape LED flood light with warranty

Outdoor LED Stadium Flood Light 400W For Landscape Sports Ground
Technical Specifications
Parameter Value
Input voltage AC 100V-240V
Frequency range 50HZ-60HZ
Power factor >0.95
Chip brand EPISTAR/bridgelux
Power brand MeanWell/inventronics
LED Configuration Details
3030 PLAN
Power Model LED Quantity Configuration
30W SLFR03-13 48PCS 8S6P(16H1)
40W SLFR03-13 48PCS 8S6P(16H1)
50W SLFR03-13 48PCS 8S6P(16H1)
50W SLFR03-15 64PCS 8S8P(16H1)
60W SLFR03-15 96PCS 8S12P(6H1)
100W SLFR03-110 144PCS 8S18P(16H1)
150W SLFR03-110 216PCS 8S27P(6H1)
200W SLFR03-120 256PCS 8S32P(16H1)
240W SLFR03-120 320PCS 8S40P(6H1)
300W SLFR03-140 432PCS 8S54P(16H1)
400W SLFR03-140 576PCS 8S72P(16H1)
460W SLFR03-140 720PCS 8S90P(6H1)
5050 PLAN
Power Model LED Quantity Configuration
30W SLFR03-13 12pcs 2S6P(6H1)
40W SLFR03-13 12pcs 2S6P(6H1)
50W SLFR03-13 12pcs 2S6P(6H1)
50W SLFR03-15 24pcs 2S12P(6H1)
60W SLFR03-15 24pcs 2S12P(6H1)
100W SLFR03-110 54pcs 2S27P(6H1)
150W SLFR03-110 54pcs 2S27P(6H1)
200W SLFR03-120 96pcs 2S48P(6H1)
240W SLFR03-120 96pcs 2S48P(6H1)
300W SLFR03-140 144pcs 2S72P(4H1)
400W SLFR03-140 216pcs 2S108P(6H1)
460W SLFR03-140 216pcs 2S108P(6H1)
Optical Specifications

Lens options: 16in1 lens (20×60°/20°/T1/T2/T3/T4/T5/30°/60°/90°/P50), 6in1 lens (30°(5050)/60°/90°/T2/T3)

System light effect: 120-130 lm/W

Power efficiency: >90%

Color temperature: 2700-6500K

Color rendering index: Ra≥70

Light distribution: Bats airfoil light distribution

Light design: Lens light distribution

Beam angle: 30/60/90/120/type II/type III/P50

Environmental Specifications

LED Junction temperature: ≤ 90℃

Working temperature: -30℃ -- +50℃

Storage temperature: -30℃ -- +50℃

IP Grade: IP66

Working life-span: ＞50,000H

Electrical Connections

Power connection line:

  • Brown - L
  • Blue - N
  • Yellow/Green - G
Physical Specifications

Color of lamp shell: Black / Silver/Grey

Support tube diameter: Standard

Weight Specifications
Model Weight (N.W.)
SLFR03-13 1.71kg
SLFR03-15 2.5kg
SLFR03-110 4.85kg
SLFR03-120 6.65kg
SLFR03-140 13.4kg
Product Dimensions
Model Length (mm) Width (mm) Height (mm)
SLFR03-13 230 270 50
SLFR03-15 320 224 50
SLFR03-110 442 291 62
SLFR03-120 520 342 65
SLFR03-140 620 450 84
Packaging Information
Model Packing Quantity Length (mm) Width (mm) Height (mm)
SLFR03-13 10pcs/ctn 487 300 295
SLFR03-15 6pcs/ctn 610 375 255
SLFR03-110 4pcs/ctn 475 415 340
SLFR03-120 2pcs/ctn 565 395 233
SLFR03-140 1pcs/ctn 660 480 125
Product Images
Outdoor Led Stadium Flood Light 400W For Landscape Sports Ground 0 Outdoor Led Stadium Flood Light 400W For Landscape Sports Ground 1 Outdoor Led Stadium Flood Light 400W For Landscape Sports Ground 2
